S1-024-27651-000 Coleman 5.5" Blower Motor 1/3HP 240V 4-Speed (1 year warranty)
S1-024-27651-000 Coleman 5.5" Blower Motor 1/3HP 240V 4-Speed No Longer Made Crossed over to S1-024-40903-000
If you're working on a Coleman EB-series electric furnace (EB10B, EB12B, EB15B, EB17B, EB20B, EB23B), S1-024-40903-000 is the current OEM replacement for S1-024-27651-000.
Product Description
The S1-024-27651-000 Blower Motor is a genuine OEM replacement motor designed for select Coleman®, York®, Luxaire®, and Guardian® furnaces and air handlers. This 1/3 HP, 240-volt, 4-speed motor delivers reliable airflow for heating and cooling applications, helping maintain proper system efficiency and comfort. Featuring a 5.5-inch diameter frame, this direct replacement blower motor is engineered to meet original equipment specifications for dependable performance and long service life.
Ideal for replacing worn, noisy, or failed blower motors in compatible HVAC systems.
Features
- Genuine OEM Coleman replacement motor
- 1/3 Horsepower rating
- 240 Volt operation
- 4-speed motor design
- 5.5-inch diameter frame
- Reliable airflow performance
- Direct-fit OEM replacement
- Suitable for furnace and air handler applications
- Durable construction for long service life
- Includes 1-Year Warranty
Technical Notes
- Part Number: S1-024-27651-000
- Product Type: Blower Motor
- Horsepower: 1/3 HP
- Voltage: 240 VAC
- Speeds: 4-Speed
- Frame Diameter: 5.5 Inches
- Application: Furnaces and Air Handlers
- OEM Replacement Component
- Verify shaft dimensions, rotation, mounting style, and wiring before ordering
- Professional installation recommended
Cross Reference
- S1-024-27651-000
- 024-27651-000
- S1-02427651000
- Coleman Blower Motor
- York Blower Motor
- Luxaire Blower Motor
- Guardian Blower Motor
- 1/3 HP Blower Motor
- 240V Furnace Motor
- 4-Speed HVAC Motor
- OEM Furnace Blower Motor

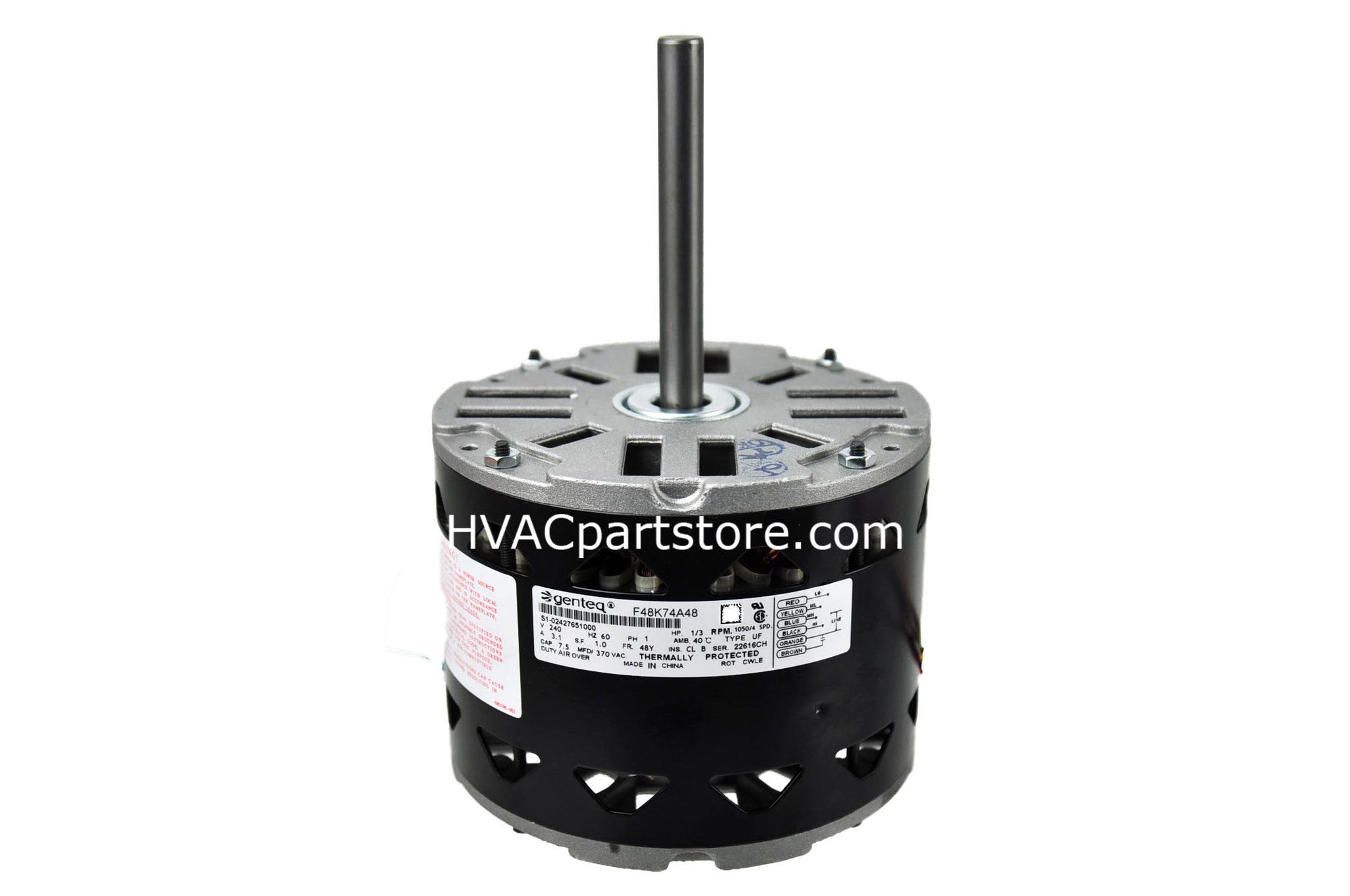

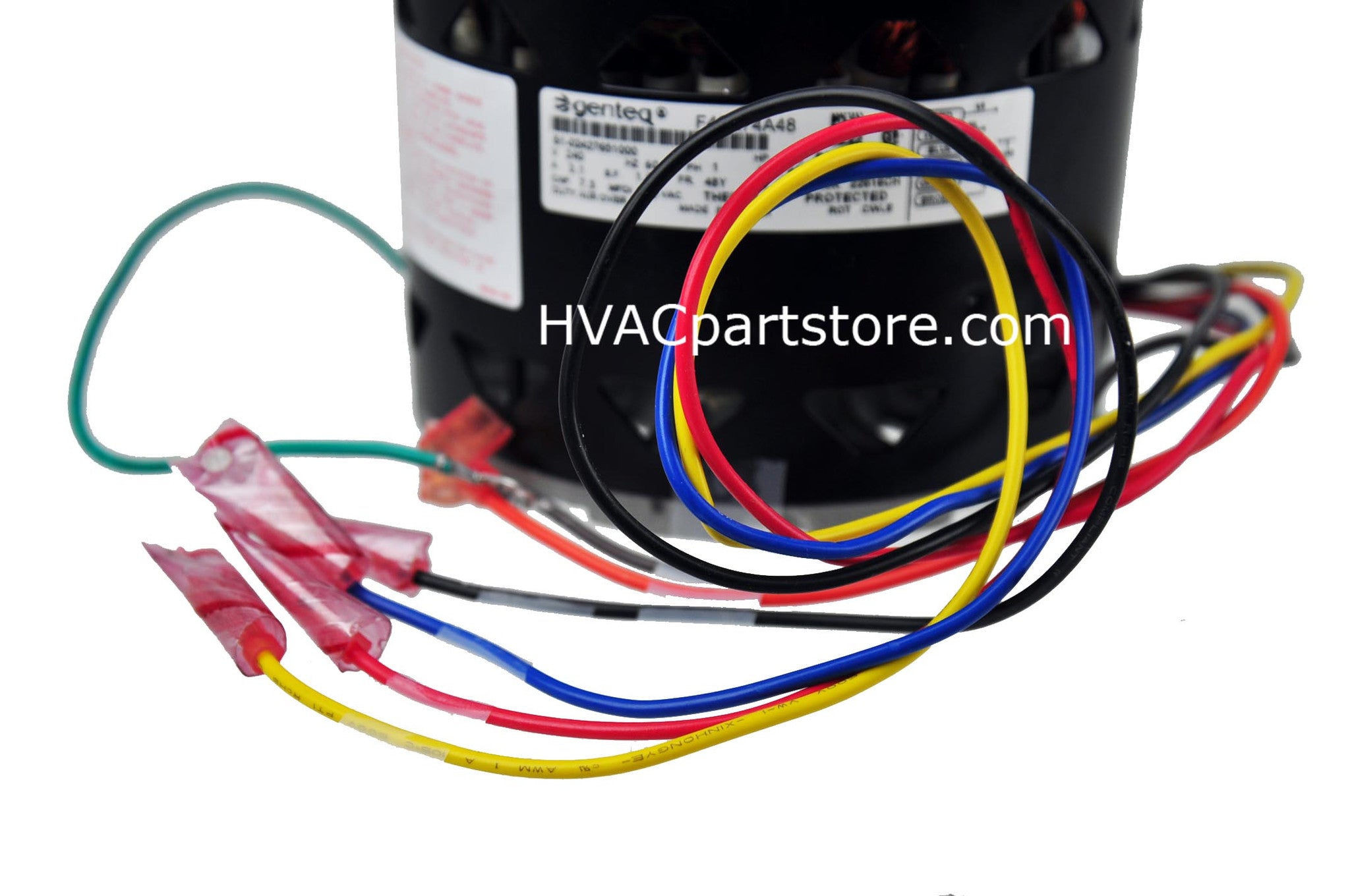

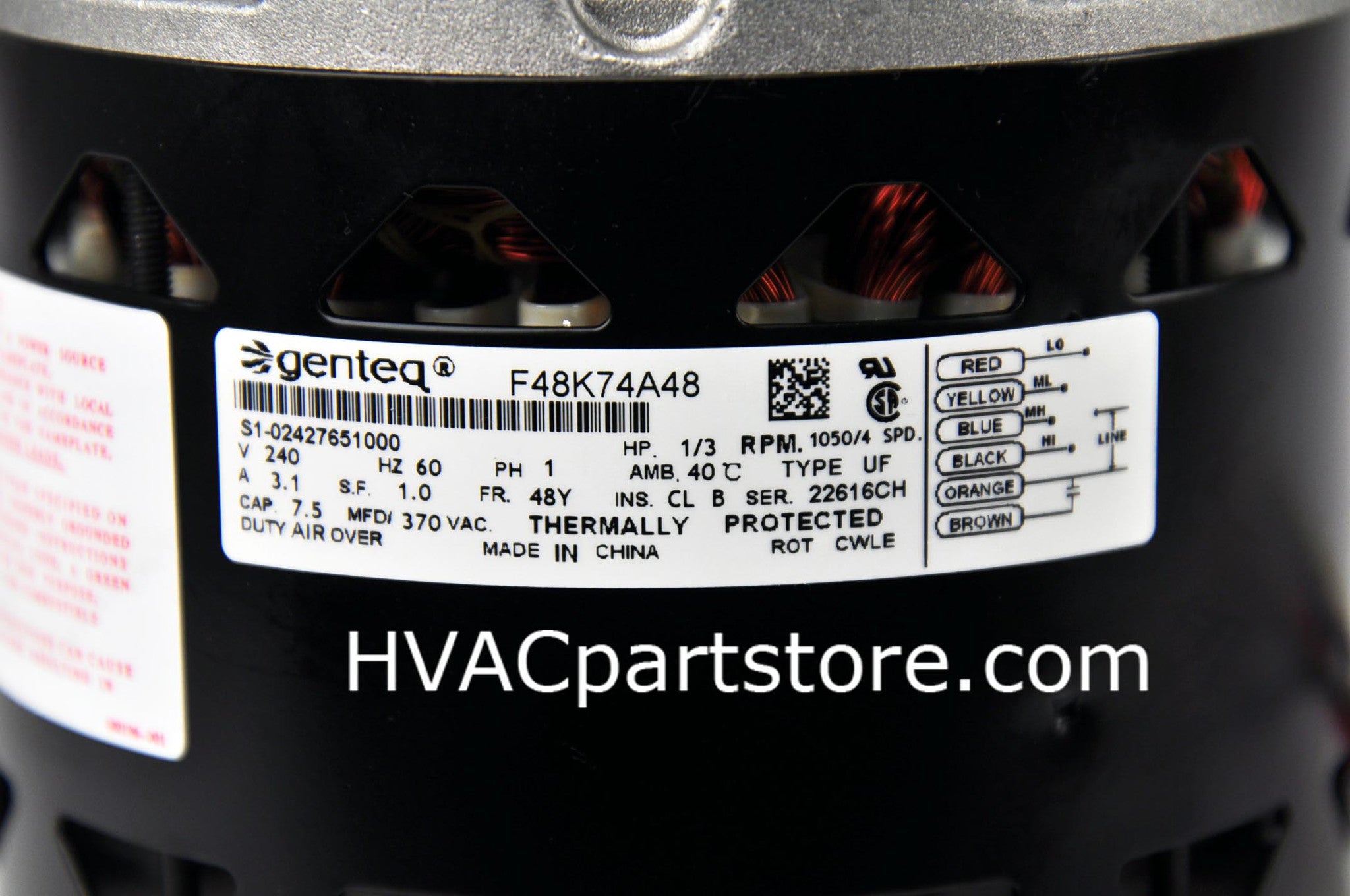

Original, Coleman 1/3 hp 4-speed blower motor. 240V, 60Hz, 3.1 Amps, 1050RPM. 1/2" x 4" shaft. 5.5" housing diameter x 4" deep. Red-low, yellow-medium low, blue-medium high, black-high, green-ground, orange & brown to capacitor.
Motor mount for Coleman furnace new motor upgrade 2016 and newer motor need's part# S1-373-19831-100<-- Click to order
Requires a 7.5/370V oval run capacitor POCF7-5A (not included). Replaces 1468-243, 1468-243P, 1468-243P/A & S1- 02427651000. 024-2765-1000
