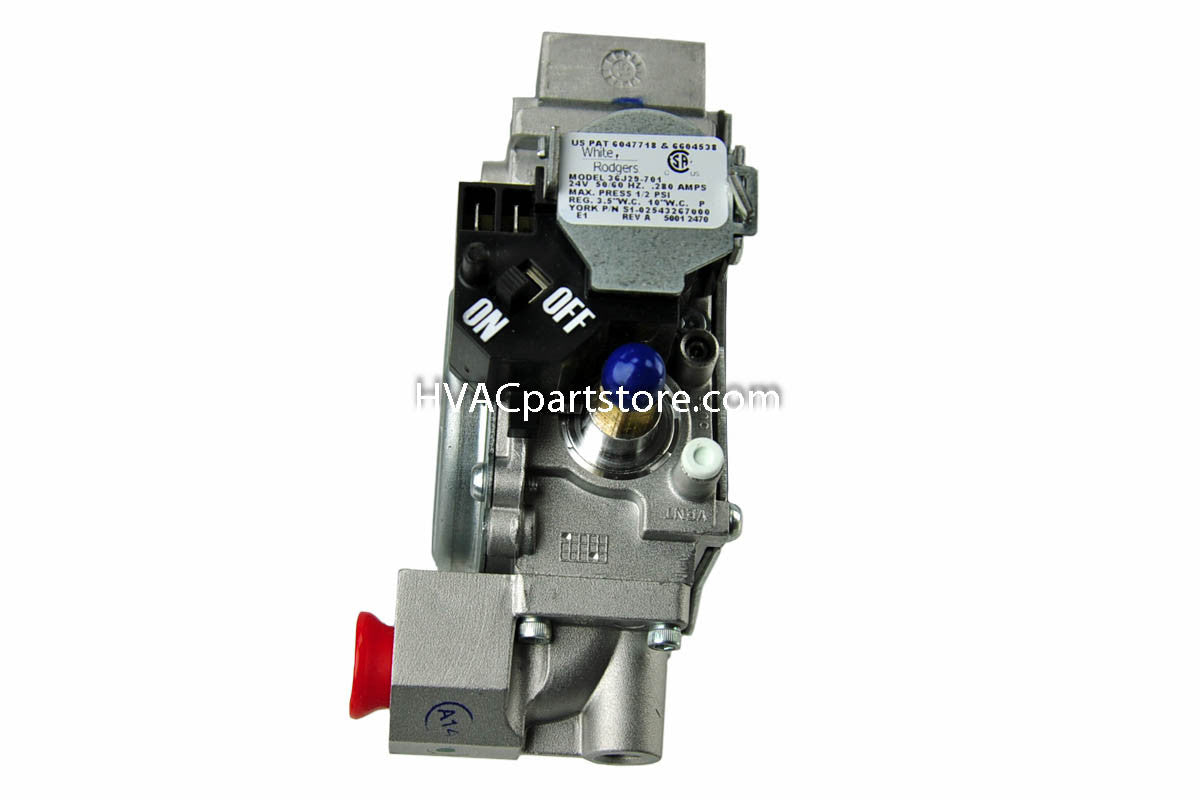

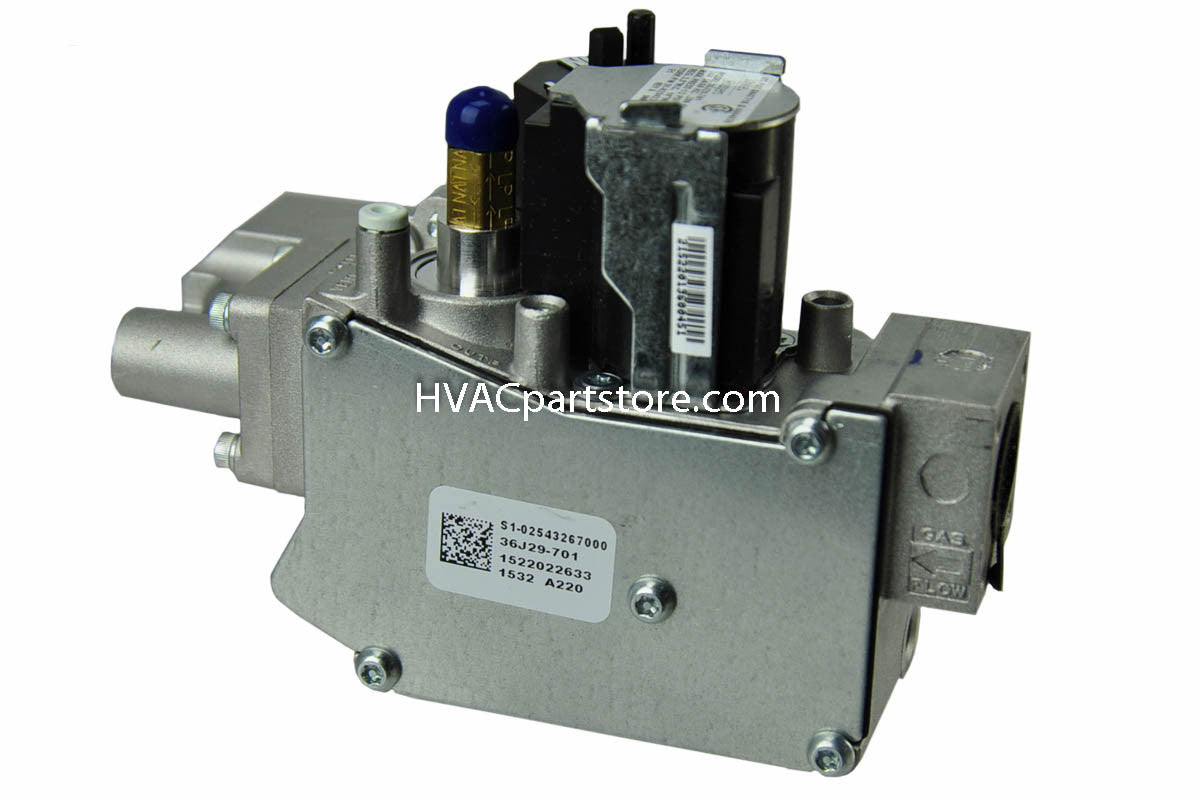

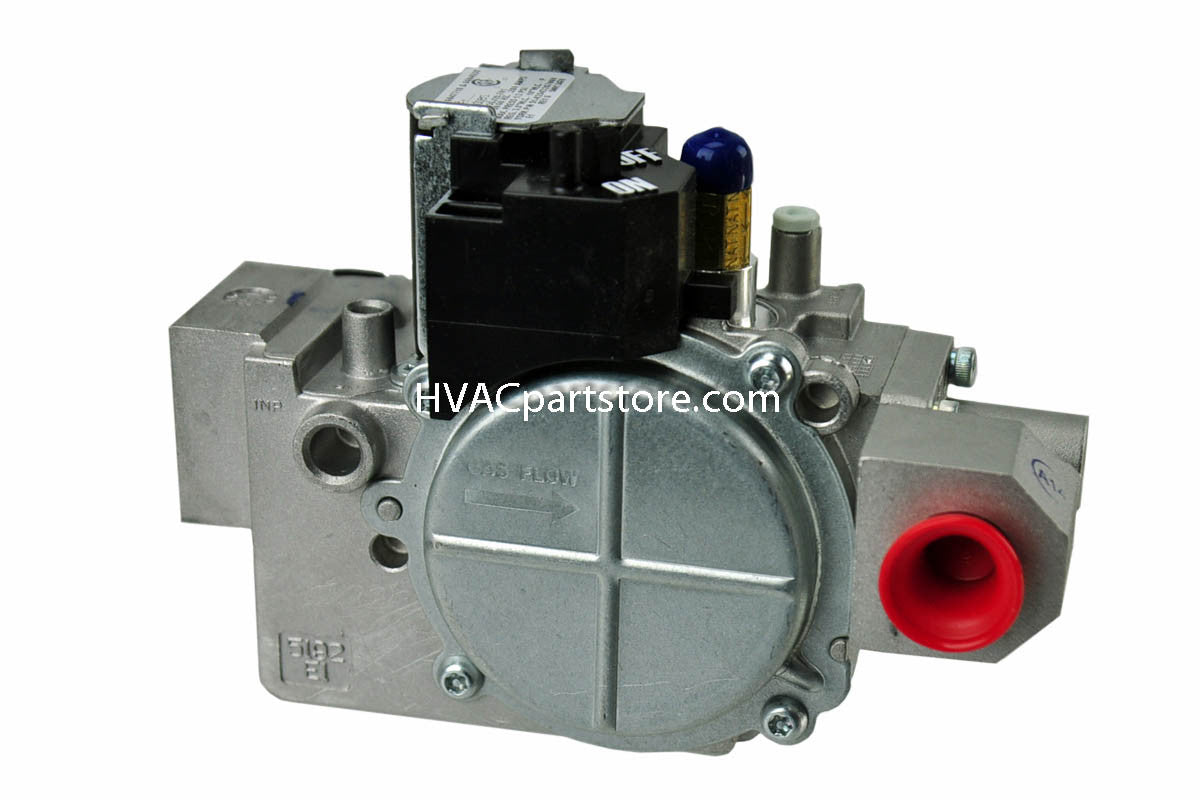

The Coleman 7990‑328 Gas Valve is an OEM replacement White‑Rodgers 36J29‑701 combination gas valve used on many Coleman, Evcon, York, Luxaire, and Fraser‑Johnston furnaces equipped with electronic ignition systems. Exact replacement for older model Mobile home furnaces

This versatile gas valve is field‑convertible between Natural Gas and LP (Propane) by reversing the internal conversion stem, eliminating the need for separate gas valve models. Designed for dependable ignition performance, it precisely controls gas flow to the burners while interfacing with modern furnace ignition controls.

The updated White‑Rodgers design may look different from older valves but serves as the approved replacement for numerous discontinued Coleman gas valves. It features a 1/2" gas inlet on the right side and a 3/8" outlet on the back left, matching many original furnace gas train configurations.

Ideal for replacing failed gas valves causing ignition failures, sticking valves, intermittent burner operation, or gas flow issues.

 Cross‑Reference

Direct OEM

• 7990‑328
• White‑Rodgers 36J29‑701

Replaces

• 7990‑326
• 7990‑3261
• 7990‑326P
• 7990‑328
• 7990‑328P
• 7707‑326
• 7707‑3261
• 7707‑326P
• 7C5C7F026
• 36C76
• 36E29‑101
• S1‑02543267000

Compatible Brands

• Coleman
• York
• Evcon
• Luxaire
• Fraser‑Johnston

Specifications

• Manufacturer: White‑Rodgers
• Model: 36J29‑701
• Gas Type: Natural Gas or LP (Convertible)
• Ignition Type: Electronic Ignition
• Inlet Connection: 1/2" NPT (Right Side)
• Outlet Connection: 3/8" NPT (Back Left)
• Application: Residential & Manufactured Housing Furnaces

 Technician Notes

• Factory‑approved replacement for multiple obsolete Coleman gas valves.
• Easily converts between Natural Gas and LP by reversing the conversion stem.
• Always verify manifold pressure after installation.
• Leak test all gas connections before operation.
• Confirm proper ignition sequence and flame characteristics after replacement.

Common Symptoms of Failure

• No burner ignition
• Gas valve will not open
• Intermittent burner operation
• Delayed ignition
• Furnace lockout condition
• Sticking valve operation

Installation Tips

• Match gas type before startup.
• Verify inlet gas pressure.
• Check manifold pressure per furnace specifications.
• Replace damaged gas piping fittings or unions.
• Inspect flame sensor and ignition system during service.
