3316314.000 Dometic Duo-Therm Blizzard NXT Fan Motor Assembly
3316314.000 Dometic Duo-Therm Blizzard NXT Fan Motor Assembly
Requires a 5 MFD Capacitor
5 MFD 370-440V ROUND HIGH QUALITY METAL RUN CAPACITOR
| Brand | Dometic |
|---|---|
| Model | 3316314.000 |
| Manufacturer SKU | 4450012555 |
| Fits | Select Dometic Blizzard NXT AC units. H541815A, H541816A, and H541915 |
| Compatible With | Some Dometic Blizzard NXT AC Units (specific model and product #'s may vary) |
| Color | Black |

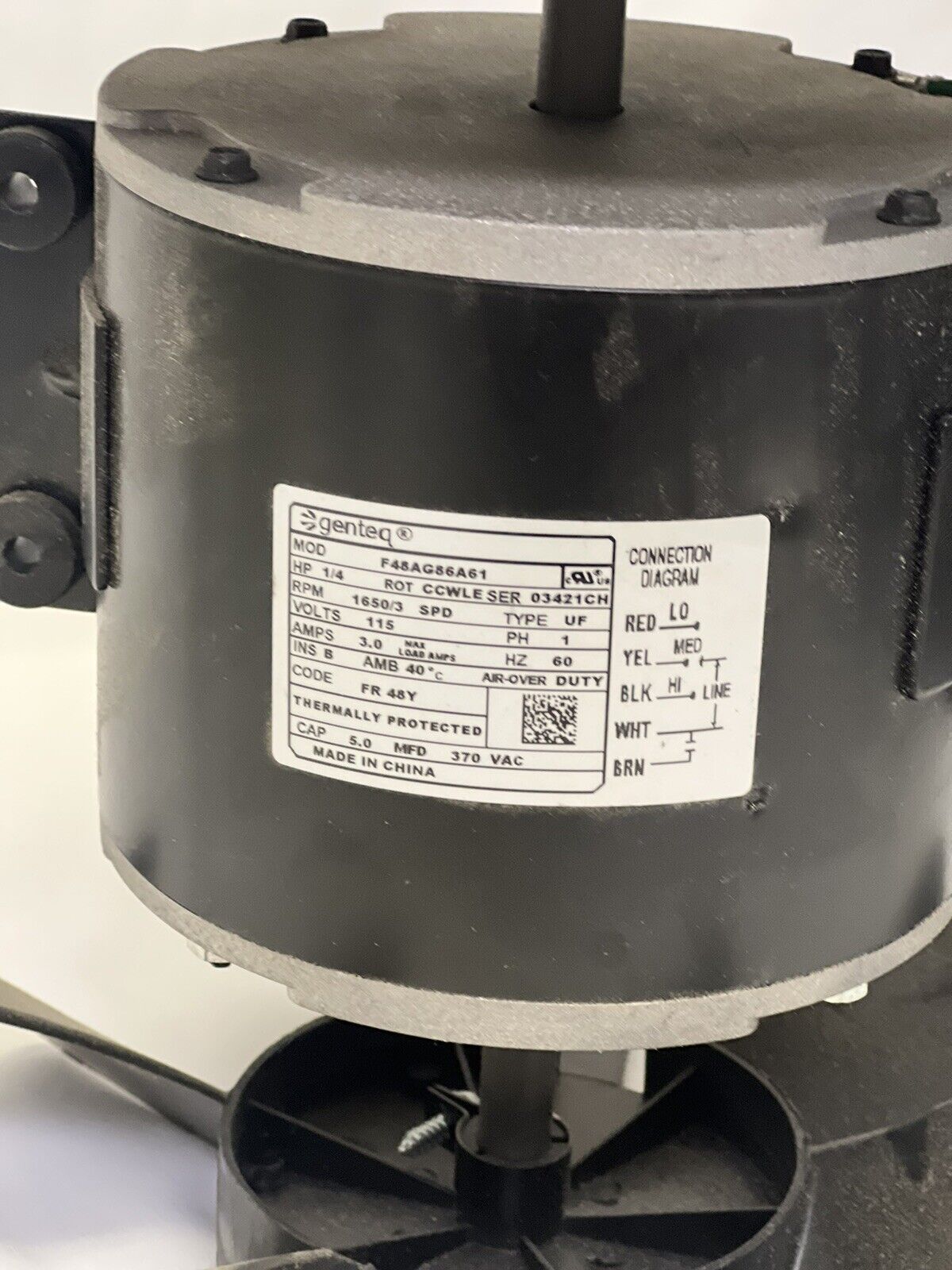

| Features | Motor Type: Genteq F48AG86A61 Wiring to connect to a capacitor and a built-in control board. Designed to operate at high speeds for extended periods of time. Generates force required to move the air through the air conditioning system. Dometic Blizzard Series mounting brackets HP 1/4, Volts 115, AMPS 3.0. HZ 60 Max Speed: 1650 RPM |
| Included | (1) Motor Assembly |
| Dimensions | Motor Case: 5-5/8" Dia. x 4-3/4" T #1 D-Shaft: 3-1/4" L x 1/2" D #2 D-Shaft: 3-1/2" L x 1/2" D |
| Net Weight | 11.40 |
| Special Order Item | No |
| Return Policy | 30 Days (After Delivery) |
