46515-611 Coleman 2 TON BASEMENT AC/HP RV Unit

Normal stock Item

Replaces: C46515-811 is no longer available. Use this 46515-611

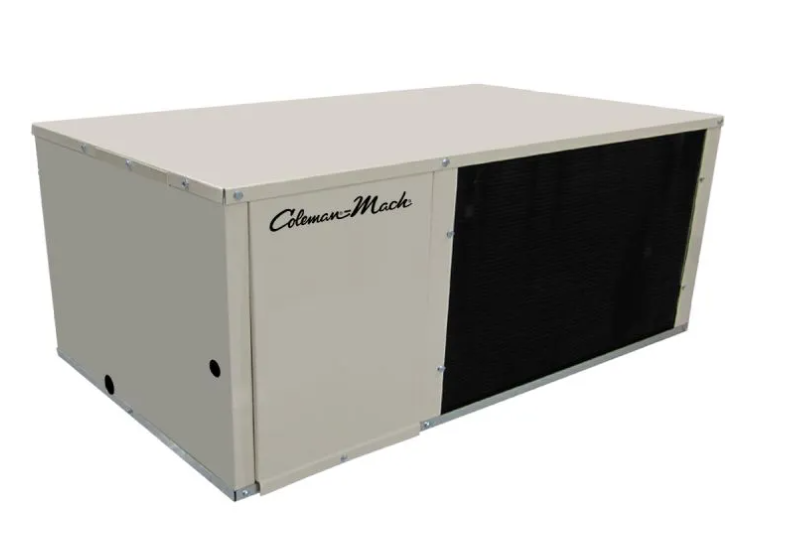

Coleman‑Mach 46515‑611 2‑Ton Basement AC/Heat Pump — OEM Replacement for 46515‑811 The Coleman‑Mach 46515‑611 is the current OEM 2‑Ton basement‑mounted packaged AC/Heat Pump used in premium RVs and motorhomes. This dual‑compressor system delivers high‑efficiency cooling and full‑capacity heat pump operation while keeping noise and condensate off the roof. The 46515‑611 directly replaces the discontinued 46515‑811 and uses the same service parts, electrical components, and coil assemblies. Ideal for large RVs requiring maximum climate control performance in a compact under‑floor package.

Installation Notes (from OEM installation manual)

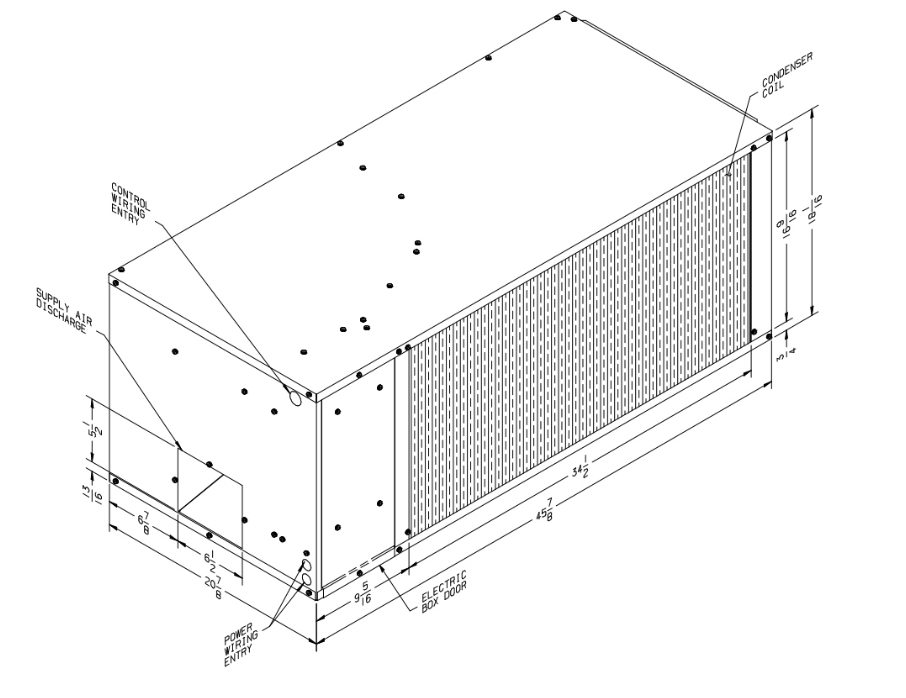

• Unit mounts below floor; ensure correct duct alignment and register sizing per spec sheet

• 115 VAC supply must be disconnected before servicing

• Thermostat uses factory 12‑VDC harness with matched connectors

• Do NOT perform dielectric (Hi‑Pot) testing — can destroy the control board

• High‑pressure switch reset requires access to electrical box and full power shutdown

Applications

• Large Class A motorhomes

• High‑end fifth wheels with basement HVAC

• RVs requiring high‑capacity cooling without rooftop units

• Direct replacement for any RV originally equipped with 46515‑811

Technical Specifications (from 46515 Series documentation)

• Capacity: 2‑Ton

• Refrigeration: Two independent circuits

• Cooling Operation:

  • Stage 1 = Compressor #1

  • Stage 2 = Compressor #2 (engages when demand is +2°F above setpoint)

• Heat Pump Operation:

  • Both circuits energized with a 30‑second delay between compressors

  • If insufficient power is available, only Circuit #1 runs

• Safety: Manual‑reset high‑pressure switch located in electrical box (115V must be OFF to reset)

• Mounting: Under‑floor basement installation

• Electrical: 115 VAC supply + 12 VDC thermostat control (factory harness)
