902514 Nordyne Cir Breaker Retro Kit 12-23kw

UPGRADE BREAKER KIT

The 621029 is for Nordyne FE series 12kw thru 17kw 30/60/60/30 fuse layout. No Longer available

REPLACES THE OLD DISCONNECT SOME MODIFICATIONS REQUIED CONSULT YOUR ELECTRITION FOR LOCAL CODES.

🔧 Product Overview

• Part Number: 902514

• Type: Circuit Breaker Disconnect Assembly

• Power Range: Supports 12 kW to 23 kW heating systems

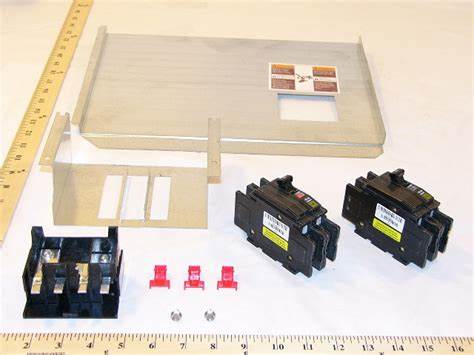

• Includes:

  • Mounting plate

  • Mounting bracket

  • Single circuit adapter

  • Two circuit breakers

  • Installation instructions

• Dimensions: 16.3″ × 11.55″ × 5.9″

• Weight: 4.3 lbs (dimensional weight: 14 lbs)

• Country of Origin: USA

• OEM Vendor: Nordyne / Neuco

✅ Compatible Nordyne Units

This disconnect assembly is designed to retrofit or replace older fuse-based disconnects in:

It replaces discontinued Nordyne parts #621029 and #621030, which used fuse layouts like 30/60/60/30

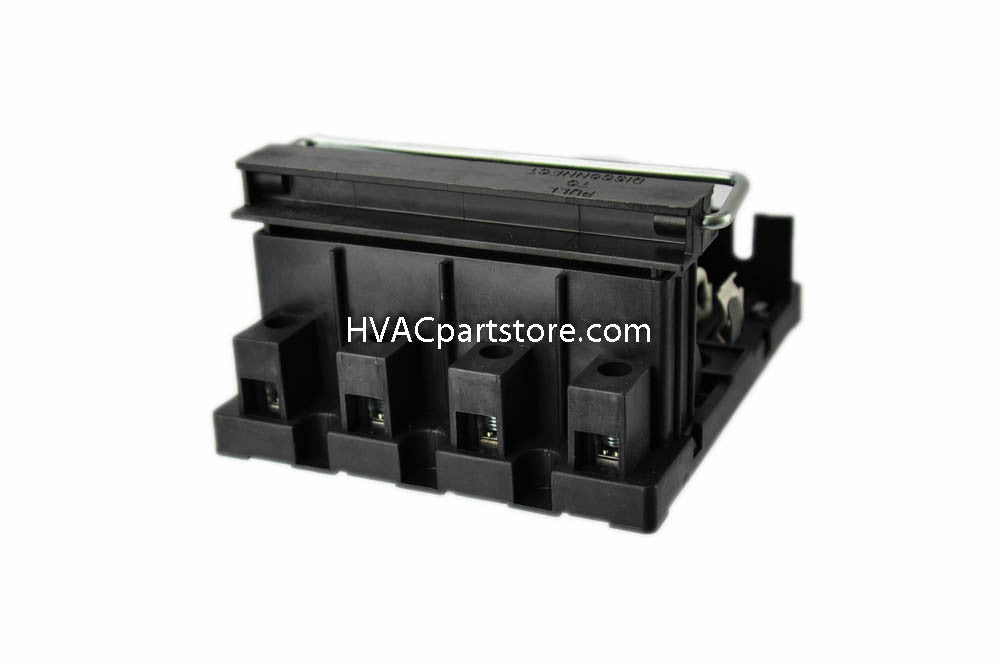

Nordyne - Intertherm disconnect assembly includes plug. Limited to stock on hand. Soon to be discontinued. Measures 4" x 5". Smaller size 30 amp 2" fuses fit on the outside, larger 60 amp 3" fuses fit in the middle. Includes interlock plug. Plug is no longer available separately. Does not included fuses and mounting screws. Soon to be discontinued.

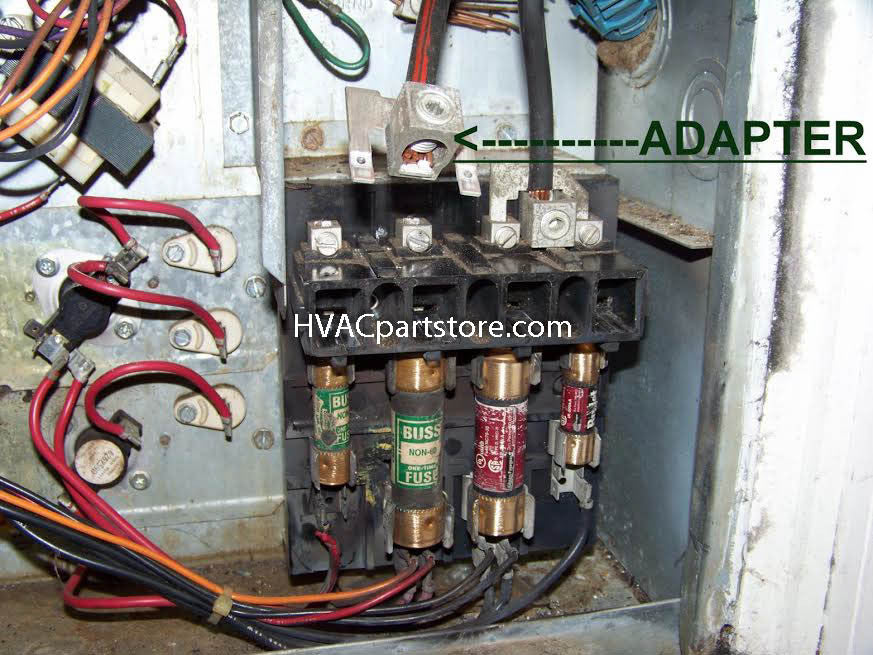

In some electric furnaces only 2 power wires feed the disconnect; whereas some units have 4 power wires. In the case of 2 power wires, the adapters which split the power into 2 poles must be reused (see photos). If your unit does not have the adapters or the adapters are not reusable, then circuit breaker assembly 902514 or equivalent must be ordered as the adapters are no longer available to order.

Replaces 360940, 620524 & 6205240. 15595-410FQR
