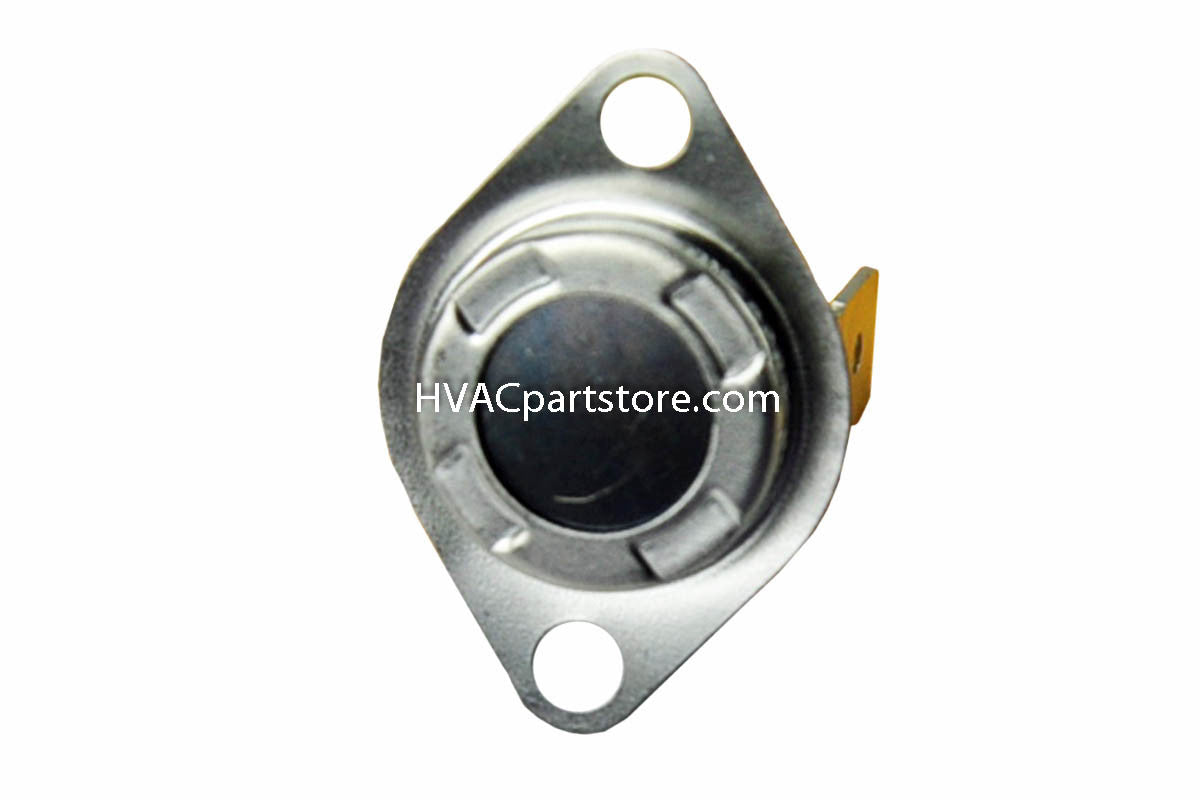

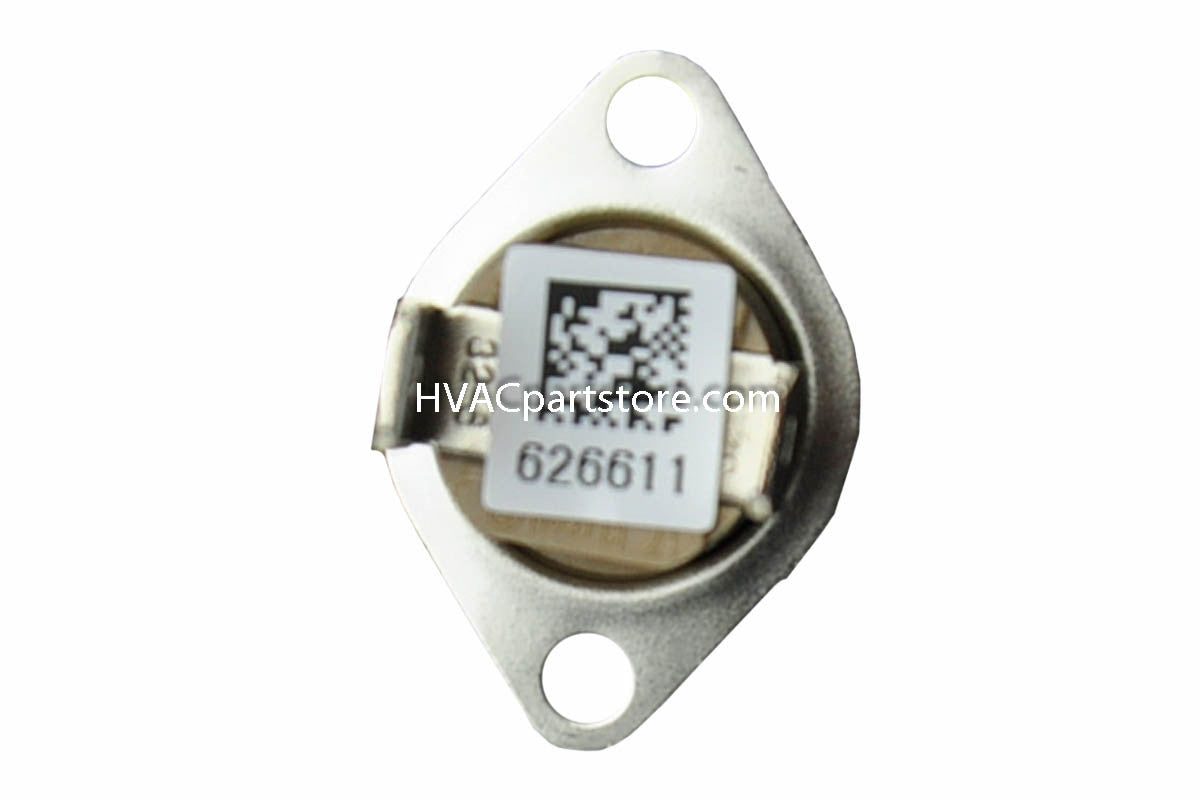

626611 Nordyne Limit Switch L130-20F

IN STOCK

Product Overview

626611 is an OEM Nordyne automatic-reset limit switch that protects HVAC systems by opening at 130 °F and closing again at 110 °F. Designed for chassis-mount installation inside furnace cabinets, it features quick-connect spade terminals and a durable thermoplastic housing.

Replaces: 626581

Technical Specifications

Cross-Reference Part Numbers

Compatibility

• Nordyne, Nordyne Miller, and Intertherm gas furnaces equipped with an L130-20F limit control

• Private-label units originally fitted with a 110–130 °F automatic limit switch

• Amana, Ducane, and Concord models using the same chassis-mount L130-20F sensor

Always verify your furnace’s data-plate specifications and control board layout before ordering.

Technician Notes

• Cut all power and shut off gas supply before servicing the unit.

• Remove the furnace access panel to expose the existing limit switch on the blower compartment or heat exchanger jacket.

• Photograph or label the quick-connect terminals to capture original wiring orientation.

• Depress the mounting clip to release the old switch, then pull the spade connectors off the terminals.

• Snap the new 626611 switch into the bracket and push the spade terminals onto its 1/4″ male lugs.

• Restore power and run the furnace through a heat cycle. Confirm blower de-energizes at approximately 130 °F and re-energizes near 110 °F.

• Use an infrared thermometer or surface probe to verify accurate trip/reset points and inspect for airflow restrictions that might trigger nuisance trips.

L130-20F limit switch 626581. Size 36TX11. Replaces 626581 & 626581R.
