Product Overview

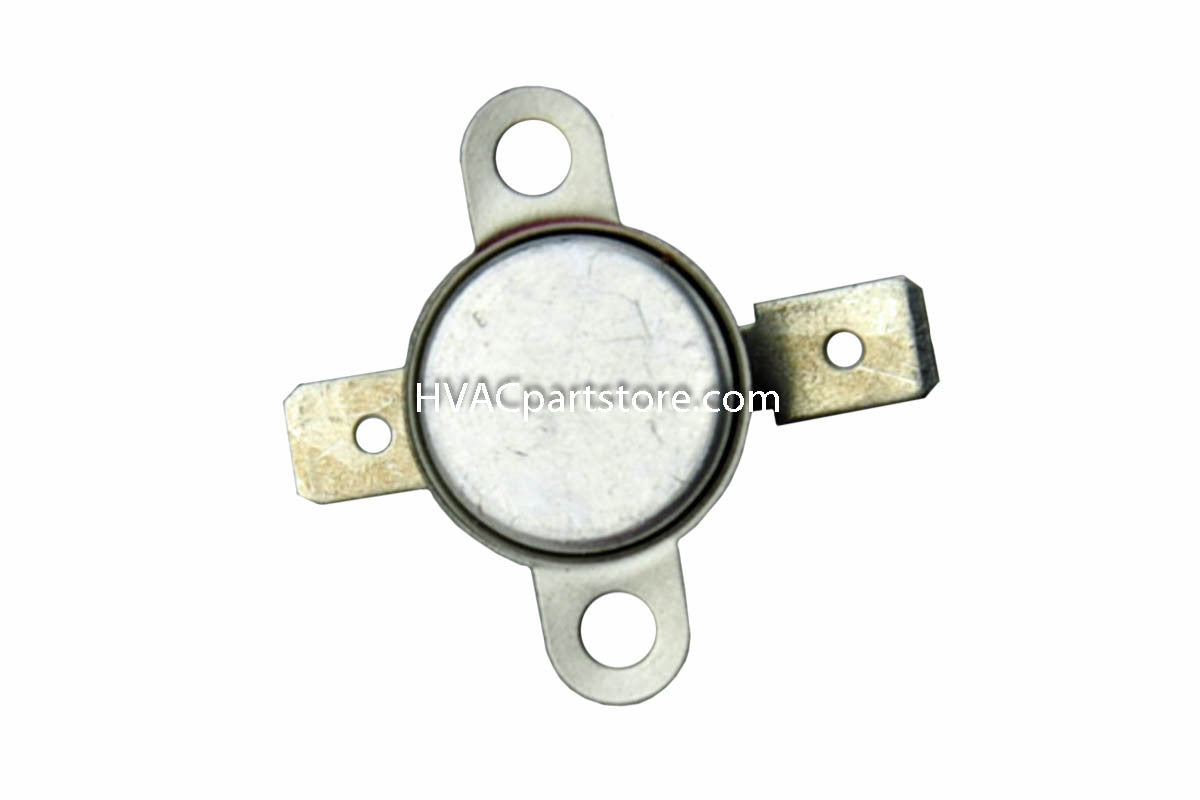

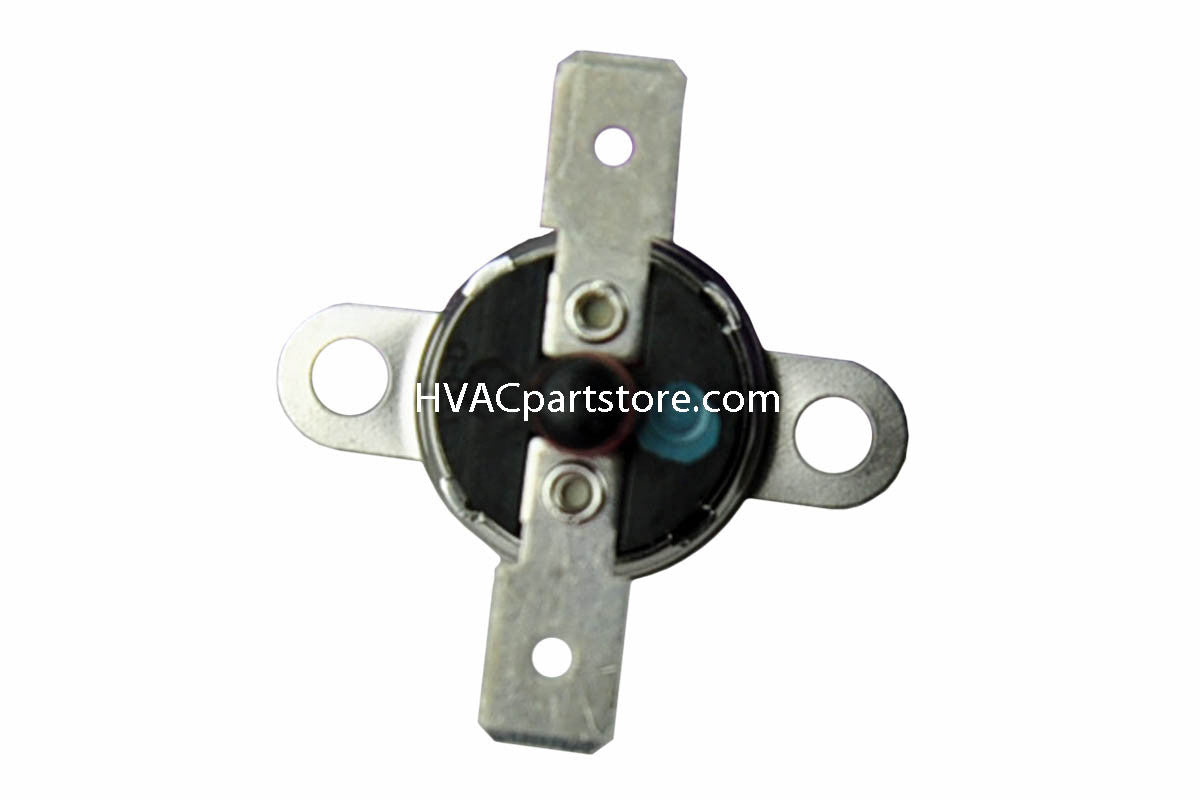

The 626422R Nordyne limit switch manual L155F is a direct-fit, manual-reset safety control for residential gas furnaces. Factory-preset to interrupt the burner circuit at 155 °F, it protects heat exchangers from overheating. This OEM-quality replacement (626422R) comes ready to install, matching Nordyne, Coleman, and compatible furnace applications without modification.
Technical Specifications
| Specification | Detail |
|---|---|
| Cut-out temperature | 155 °F (± 5 °F) |
| Differential temperature | 20 °F (± 5 °F) |
| Contact configuration | SPST normally closed |
| Electrical rating | 25 A @ 240 VAC (resistive) |
| Reset method | Manual push-button |
| Terminal type | ¼″ quick-connect spade |
| Housing material | High-temperature bakelite |
| Mounting style | Snap-in or screw retention |
| Dimensions (approx.) | 1.5″ × 1.25″ × 0.75″ (L × W × H) |
| Weight | 0.18 lb (82 g) |
Cross-Reference Part Numbers
-
Nordyne 626422R
-
Neuco L155F
-
Coleman L155F-626422
-
OEM equivalent to 626422
Compatibility
-
Nordyne and Coleman single-stage gas furnaces
-
York, Westinghouse, Bryant, Payne standard models
-
Goodman and Amana legacy series units
-
American Standard Basic Heat and Pro-Line furnaces
-
Any furnace using a 155 °F manual-reset limit switch
Technician Notes
-
Always shut off all power and verify zero voltage before handling.
-
Confirm original switch orientation and mount new unit in the identical position for accurate sensing.
-
After wiring, press the reset button only once to clear a trip; diagnose overheating root cause before restarting.
-
Test system by cycling heat and observing clean burner interruption at 155 °F.
-
Torque spade terminals per spec to prevent arcing under load.
-
Carry spare 626422R switches and matching quick-connect terminals for rapid field swaps.
Limit switch, 1/2D, size T-O-D36TX26, L155F, manual reset. Replaces 626422.
