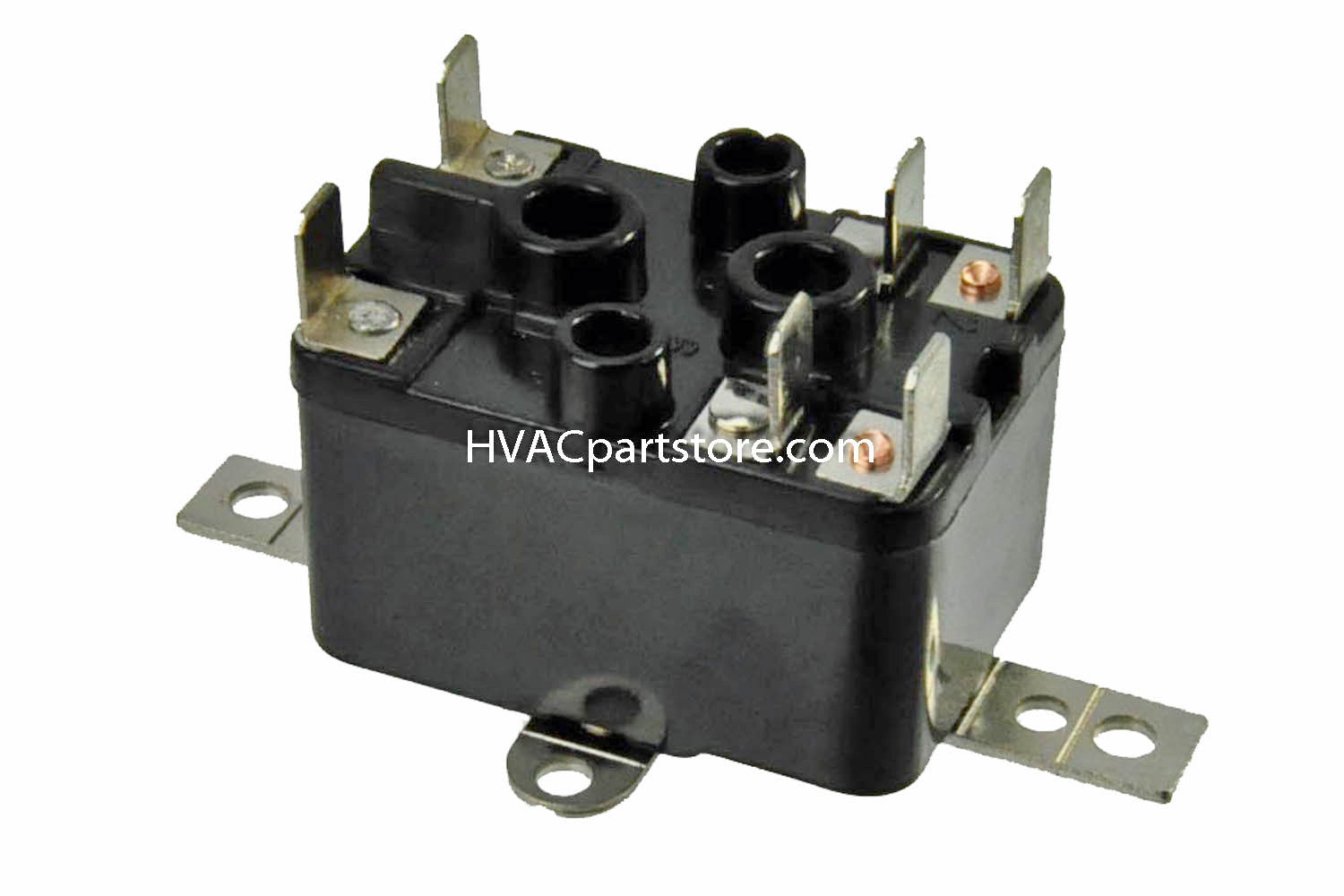

PR380 Coleman OEM relay SPDT 24V coil 6 terminals 90-380
PR380 Coleman OEM relay SPDT 24V coil 6 terminals 90-380, 1 year Warranty on all parts
Replacement blower relay 6-terminal relay with 24-volt coil. Used for switching solenoids, fan motors, and other applications.
The PR380 (90-380) OEM Relay is a versatile SPDT power relay designed for HVAC, furnace, air handler, and control circuit applications. Featuring a 24VAC coil and 6-terminal configuration, this relay provides reliable switching of motors, compressors, contactors, and auxiliary control circuits. Commonly used in Coleman®, York®, Luxaire®, and Guardian® equipment, the PR380 relay delivers dependable OEM performance and long service life.
Ideal for replacing worn, damaged, or failed relays in residential and light commercial HVAC systems.
Features
- Genuine OEM replacement relay
- SPDT (Single Pole Double Throw) configuration
- 24VAC control coil
- 6-terminal design
- Reliable switching performance
- Compatible with many HVAC control circuits
- Heavy-duty electrical contacts
- Direct replacement for compatible applications
- OEM quality and durability
Technical Notes
- Part Number: PR380
- Alternate Part Number: 90-380
- Product Type: Power Relay
- Contact Configuration: SPDT
- Coil Voltage: 24 VAC
- Terminals: 6
- Application: Furnaces, air handlers, HVAC controls, and motor circuits
- OEM Replacement Component
- Verify contact ratings and wiring configuration before ordering
- Professional installation recommended
Cross Reference
- PR380
- 90-380
- Coleman Relay PR380
- White-Rodgers 90-380
- HVAC SPDT Relay
- 24V Coil Relay
- Furnace Control Relay
- Air Handler Relay
- Fan Relay
- Power Switching Relay
Wire Information
Terminals 1 & 3 are for 24v input. Terminals 5 and 6 are normally closed (NC) and terminals 2 and 4 are normally open (NO). When 24V is applied to terminals 1 and 3, terminals 5 & 6 will open while terminals 2 and 4 will close.
Relay Replaces Coleman 3110-330; Duotherm 3-1460202; Mars 90380; Nordyne 01-0157, 620537, 620689, 621867R, 6218670, 621871, 621873, 628337, 6283370, 660190, 104786000 & 105521000; RBM 90-380; Tyco 9400-13Q139, 9400-13Q1765 S1-S90-380 and others.
