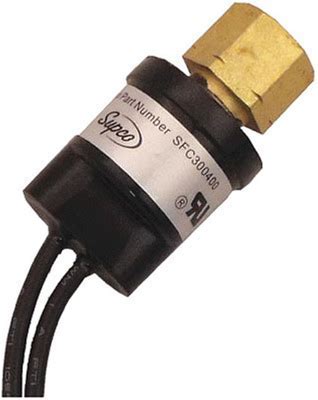

SFC300400 FAN CYCLING PRESSURE SWITCH Open 300psi Close 400psi
SFC300400--FAN CYCLING PRESSURE SWITCH
Fan cycling low pressure switches
Features/Benefits
- Condenser fan cycling switch closes on pressure rise
- Rated Voltage 24/120/240 VAC @ 50/60 Hz
- Life at rated load: 100,000 cycles
- ¼" SAE 45° female flare fitting with valve core depressor
- Snap acting stainless steel hermetically sealed sensor
- Small size and light weight for direct mounting
- Excellent set point repeatability/stability
- Wire is 18 AWG, 18" long
| Maximum FLA: | 5.8 Amps @ 120VAC |
| Maximum FLA: | 2.9 Amps @ 240VAC |
| Maximum LRA: | 34.8 Amps @ 120VAC |
| Maximum LRA: | 17.4 Amps @ 240VAC |
| Maximum Temperature: | -31°F to 149°F (-35°C to 65°C) |
| Maximum Operating Pressure: | 700 PSI |
| Burst Pressure: | 2800 PSI |
| Close PSI: | 400 PSI |
| Open PSI: | 300 PSI |
| Tolerance: | +/- 15 PSI |
| Heat pump systems |
| Air conditioning systems |
| Refrigeration Systems |
Replaces: MPF7010, 43307
