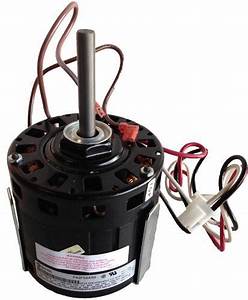

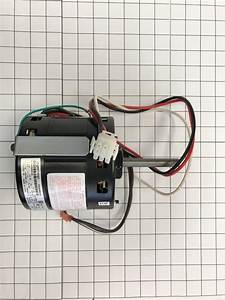

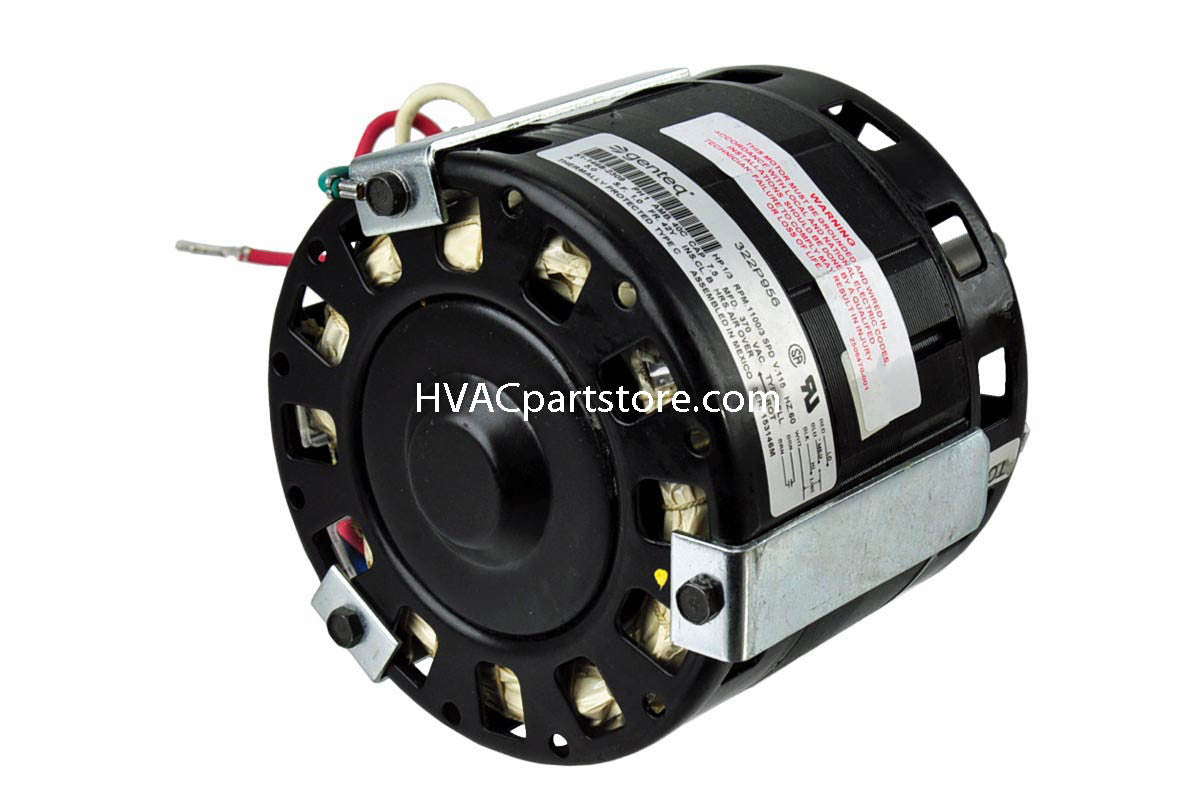

1468-2309 Coleman 5" Blower Motor 1/3HP 115V

Replaced By S1-02436226000

1/3HP 115V 1075RPM CCW BLOWER MOTOR

1/3hp blower motor. 115V.  1100 RPM. 5.0A. 1/2" x 3" shaft size. 5" motor diameter x 4" deep housing. Rotation is counter clockwise when looking from the back of the motor (CCWLE). Generally used with furnaces that have A/C. Wires can fit inside most molex plugs. Requires a capacitor 7.5 Microfarad 440Vac Oval Run Capacitor (not included). Molex pins crimped onto the end of the wires. Pins then snap inside a Molex male plug. Wiring: red-low, black-high, browns to run cap. Replaces 1468-230 & 026-34035-001. If you can not use the Molex plug then cut the plug off and wire nut wires together
